• Wheels, Gray-painted, includes Gray center caps and steel spare
• Tires, front LT245/75R16E all-season, blackwall (Standard on *G23406, *G33406 and *G33706 models.)
• Tires, rear LT245/75R16E all-season, blackwall (Standard on *G23406, *G33406 and *G33706 models.)
• Tire, spare LT245/75R16E all-season, blackwall, located at rear underbody of vehicle (Standard on *G23406, *G33406 and *G33706 models.)
• Paint, solid
• Body, standard
• Bumpers, front and rear painted Black with step-pad (Not available when ordered with (V37) front and rear chrome bumpers.)
• Grille, Black composite with single rectangular halogen headlamps
• Headlamps, halogen composite with automatic exterior lamp control
• Mirrors, outside manual, Black
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Glass, swing-out side door windows
• Glass, swing-out rear cargo door windows
• Glass, enhanced-technology, rearmost side windows. 3-layer special glass is designed to help reduce the risk of ejection during a crash. (Standard on *G23406, *G33406 and *G33706 models with 12- and 15-passenger seating. Not available with 8-passenger seating.)
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front
• Door, swing-out passenger-side, 60/40 split (Not available with (YA2) sliding passenger side door)

• Audio system, AM/FM stereo with seek-and-scan, digital clock and 2 front door speakers (with 1LT Preferred Equipment Group Not available with (NP5) leather wrapped steering wheel.)

• Seats, front bucket with vinyl trim and outboard head restraints (Requires (**W) interior trim. When ordering a seating arrangement that includes rear seats, includes rear bench seats with vinyl trim. Head restraints are not available on rear bench seats.) (Requires 1LS Preferred Equipment Group)
• Seating, 12-passenger, (2-3-3-4 seating configuration) 4-passenger seat is a 50/50 split, 2-piece configuration (Standard on *G23406, *G33406, and *G33706 models only.)
• Convenience Package, Tilt-Wheel and cruise control (Standard on the *G33406 and *G33706 models.)
• Floor covering, full-length Black rubberized-vinyl
• Steering wheel, steel sleeve column with theft-deterrent locking feature, Black
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Theft-deterrent system, vehicle, PASS-Key III
• Air conditioning, single-zone manual
• Defogger, front and side windows
• Headliner, cloth
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger, padded (Not standard with *G33706 models. See (DH6) padded driver and front passenger visors with cloth trim and dual vanity mirrors.)
• Assist handle, front passenger
• Lighting, interior with 2 dome lights, defeat switch and door handle-activated switches

• Brakes, 4-wheel antilock, 4-wheel disc
• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch for models with (C6P) 8600 lbs. (3901 kg) GVWR and above. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Air bags, head/side-curtain provides coverage for first 3-rows only. Enhanced-technology glass is provided for the fourth and fifth rows when equipped with 12- and 15-passenger seating. (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Child seat anchors, all three passenger rear seats have four anchors and two tethers
• StabiliTrak, traction assistance and vehicle stability enhancement system
• Door beams, steel-side
• Daytime Running Lamps

ENGINE, VORTEC 6.0L V8 SFI

• (323 hp [240.8 kW] @ 4600 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) (STD) Includes external engine oil cooler.

• Auxiliary Lighting
• Chrome Appearance Package
• Power Convenience Package
• 2 Speakers
• AM/FM radio
• AM/FM Stereo w/Seek & Scan
• Air Conditioning
• Electric Rear-Window Defogger
• Rear Air
• Rear Auxiliary Heater
• Power steering
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Front & Rear Chrome Bumpers w/Step-Pad
• Front anti-roll bar
• Front wheel independent suspension
• Low tire pressure warning
• Overhead airbag
• Passenger cancellable airbag
• Power Door Locks w/Lock-Out Protection
• 770 CCA Heavy-Duty Maintenance-Free Battery
• Sliding Passenger-Side Door
• Electronic Stability Control
• Delay-off headlights
• Dual Composite Halogen Headlamps
• Fully automatic headlights
• Speed control
• 145 Amp Alternator
• External Transmission Oil Cooler
• Chrome Grille
• Power-Adjustable Black Outside Heated Mirrors
• 8-Point Digital Compass
• Deluxe Console
• Driver & Front Passenger Padded Visors
• Driver door bin
• Full-Floor Color-Keyed Carpeting
• Tachometer
• Tilt steering wheel
• Trip computer
• Voltmeter
• 12-Passenger Seating (2-3-3-4 Seating Config)
• 3rd row seats: bench
• 4th-Row Bench Seat
• Front Bucket Seats
• Reclining Front Bucket Seats w/Inboard Armrests
• Passenger door bin
• Gray-Painted w/Chrome Center Caps Wheels
• Variably intermittent wipers
• 3.73 Axle Ratio

• Vehicle
• Rear Door Type: Panel
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3079
• Curb Weight - Rear (lbs): 2843
• Gross Vehicle Weight Rating Cap (lbs): 9600
• Gross Combined Wt Rating (lbs): 14000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1155
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Suspension
• Suspension Type - Front: Coil springs
• Suspension Type - Rear: Multi-leaf
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.14
• Tires
• Front Tire Order Code: XHH
• Rear Tire Order Code: YHH
• Spare Tire Order Code: ZHH
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x - TBD -
• Rear Wheel Size (in): 16 x - TBD -
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid Inboard Rail
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 135.0
• Length, Overall w/rear bumper (in): 224.1
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 81.6
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 27.7
• Ground Clearance, Front (in): 8.2
• Ground Clearance, Rear (in): 7.1
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57.0
• Side Door Opening Height (in): 47.9
• Step Up Height - Front (in): 19.4
• Step Up Height - Side (in): 20.2
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.6
• Cargo Area Length @ Floor to Seat 1 (in): 127.8
• Cargo Area Length @ Floor to Seat 2 (in): 89.4
• Cargo Area Length @ Floor to Seat 3 (in): 57.4
• Cargo Area Length @ Floor to Seat 4 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.5
• Cargo Box (Area) Height (in): 51.9
• Cargo Volume to Seat 1 (ft³): 217.3
• Cargo Volume to Seat 2 (ft³): - TBD -
• Cargo Volume to Seat 3 (ft³): 204.0
• Interior Dimensions
• Passenger Capacity: 12
• Front Head Room (in): 40.2
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.5
• Second Head Room (in): 38.5
• Second Leg Room (in): 34.8
• Second Shoulder Room (in): 68.9
• Second Hip Room (in): 66.0
• Third Head Room (in): 38.6
• Third Leg Room (in): 37.6
• Third Shoulder Room (in): 63.5
• Third Hip Room (in): 64.4
• Fourth Head Room (in): 38.1
• Fourth Leg Room (in): 39.8
• Fourth Shoulder Room (in): 68.3
• Fourth Hip Room (in): 59.6
• Summary

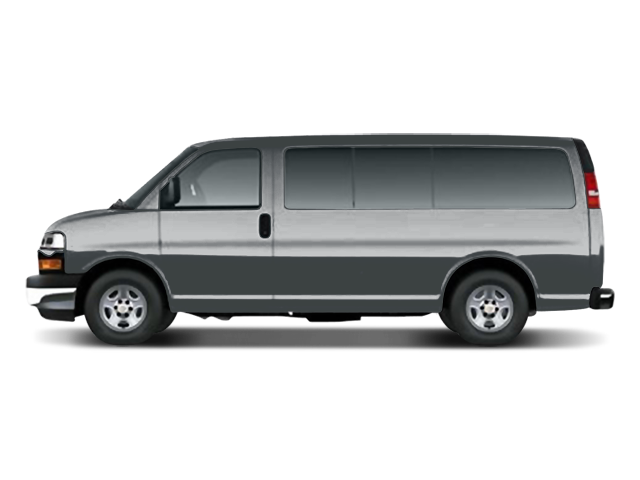

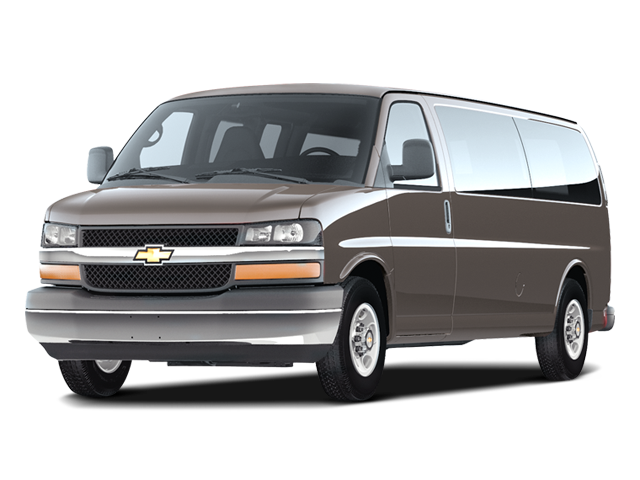

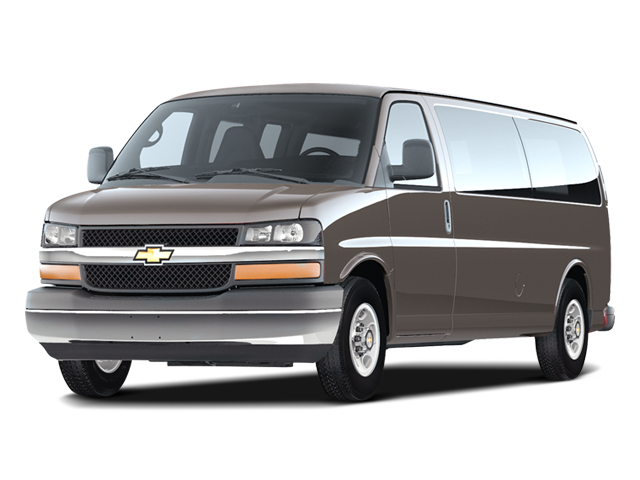

• Vehicle Name: Chevrolet Express Passenger
• Body Style: 3500 135" WB
• Body Code: ZW9
